MCP Tool Cookbook

This cookbook provides examples of how to use the mcp tool to query and understand your Python codebase. The "Tool" indicates which mcp tool to use, and the "JSON Arguments" are what the LLM would provide to that tool.

Basic Queries

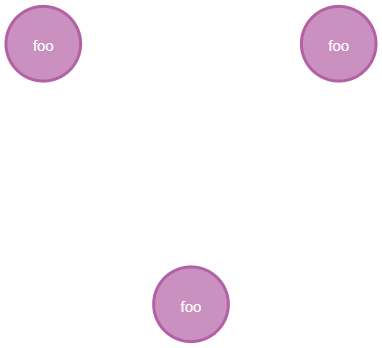

1. Find a specific function by name

Natural Language: "Where is the function foo defined?"
Tool: find_code
JSON Arguments: json { "query": "foo" }

Query 1

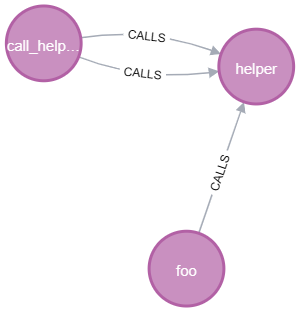

2. Find all calls to a specific function

Natural Language: "Find all calls to the helper function."
Tool: analyze_code_relationships
JSON Arguments: json { "query_type": "find_callers", "target": "helper" }

Query 2

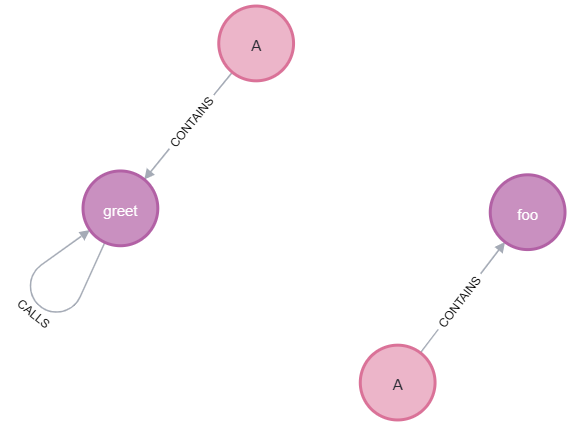

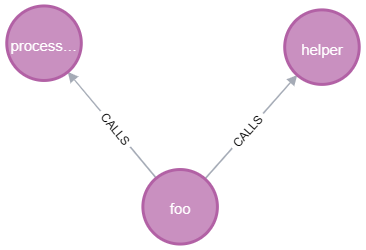

3. Find what a function calls

Natural Language: "What functions are called inside the foo function?"
Tool: analyze_code_relationships
JSON Arguments: json { "query_type": "find_callees", "target": "foo", "context": "/teamspace/studios/this_studio/demo/CodeGraphContext/tests/sample_project/module_a.py" }

Query 3

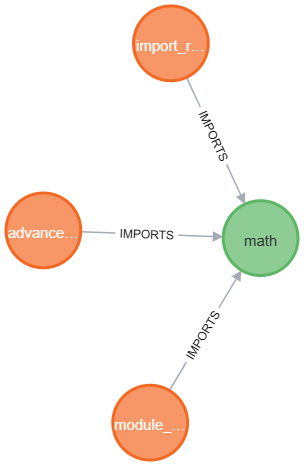

4. Find all imports of a specific module

Natural Language: "Where is the math module imported?"
Tool: analyze_code_relationships
JSON Arguments: json { "query_type": "find_importers", "target": "math" }

Query 4

5. Find all methods of a class

Natural Language: "What are the methods of the A class?"
Tool: analyze_code_relationships
JSON Arguments: json { "query_type": "class_hierarchy", "target": "A" }
Note: The response for class_hierarchy includes a list of methods.

Query 5

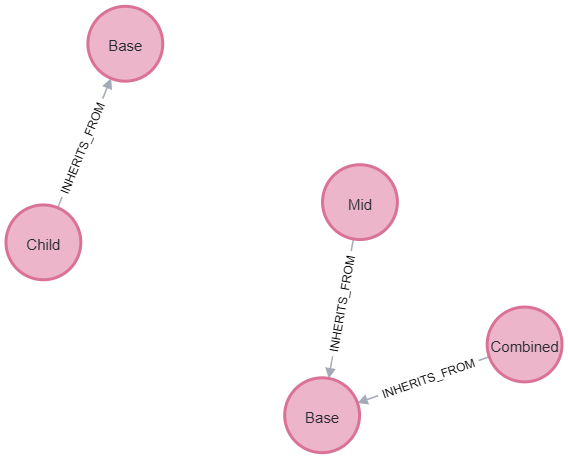

6. Find all classes that inherit from a specific class

Natural Language: "Show me all classes that inherit from Base."
Tool: analyze_code_relationships
JSON Arguments: json { "query_type": "class_hierarchy", "target": "Base" }
Note: The response for class_hierarchy includes a list of child classes.

Query 6

7. Find all functions with a specific decorator

Natural Language: "Find all functions with the log_decorator."
Tool: analyze_code_relationships
JSON Arguments: json { "query_type": "find_functions_by_decorator", "target": "log_decorator" }

Query 7

8. Find all dataclasses

Natural Language: "Find all dataclasses."
Tool: execute_cypher_query
JSON Arguments: json { "cypher_query": "MATCH (c:Class) WHERE 'dataclass' IN c.decorators RETURN c.name, c.file_path" }

Query 8

Code Analysis & Quality

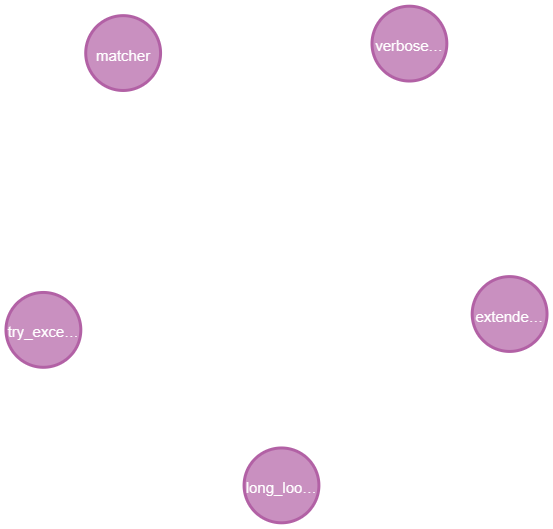

9. Find the 5 most complex functions

Natural Language: "Find the 5 most complex functions."
Tool: find_most_complex_functions
JSON Arguments: json { "limit": 5 }

Query 9

10. Calculate cyclomatic complexity of a function

Natural Language: "What is the cyclomatic complexity of try_except_finally?"
Tool: calculate_cyclomatic_complexity
JSON Arguments: json { "function_name": "try_except_finally" }

11. Find unused code

Natural Language: "Find unused code, but ignore API endpoints decorated with @app.route."
Tool: find_dead_code
JSON Arguments: json { "exclude_decorated_with": ["@app.route"] }

Query 11

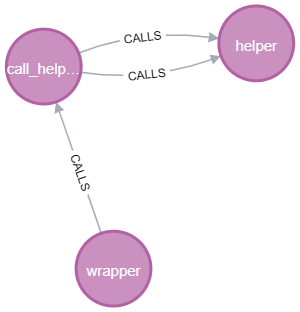

12. Find the call chain between two functions

Natural Language: "What is the call chain from wrapper to helper?"
Tool: analyze_code_relationships
JSON Arguments: json { "query_type": "call_chain", "target": "wrapper->helper" }

Query 12

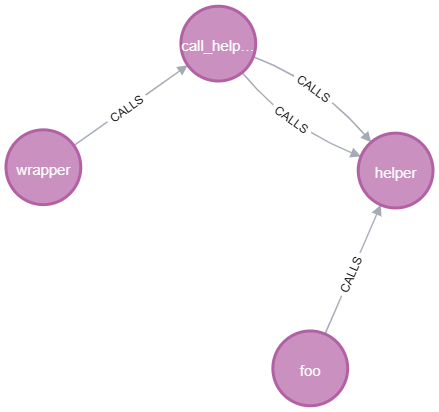

13. Find all direct and indirect callers of a function

Natural Language: "Show me all functions that eventually call the helper function."
Tool: analyze_code_relationships
JSON Arguments: json { "query_type": "find_all_callers", "target": "helper" }

Query 13

14. Find functions by argument name

Natural Language: "Find all functions that take self as an argument."
Tool: analyze_code_relationships
JSON Arguments: json { "query_type": "find_functions_by_argument", "target": "self" }

Query 14

15. List all python package imports from a directory

Natural Language: "List all python package imports from my project directory."
Tool: execute_cypher_query
JSON Arguments: json { "cypher_query": "MATCH (f:File)-[:IMPORTS]->(m:Module) WHERE f.path ENDS WITH '.py' RETURN DISTINCT m.name" }

Repository Information Queries

16. List all indexed projects

Natural Language: "List all projects I have indexed."
Tool: list_indexed_repositories
JSON Arguments: json {}

Query 16

17. Check the status of an indexing job

Natural Language: "What is the status of job 4cb9a60e-c1b1-43a7-9c94-c840771506bc?"
Tool: check_job_status
JSON Arguments: json { "job_id": "4cb9a60e-c1b1-43a7-9c94-c840771506bc" }

18. List all background jobs

Natural Language: "Show me all background jobs."
Tool: list_jobs
JSON Arguments: json {}

Advanced Cypher Queries

These examples use the execute_cypher_query tool for more specific and complex questions.

19. Find all function definitions

Natural Language: "Find all function definitions in the codebase."
JSON Arguments: json { "cypher_query": "MATCH (n:Function) RETURN n.name, n.file_path, n.line_number LIMIT 50" }

Query 19

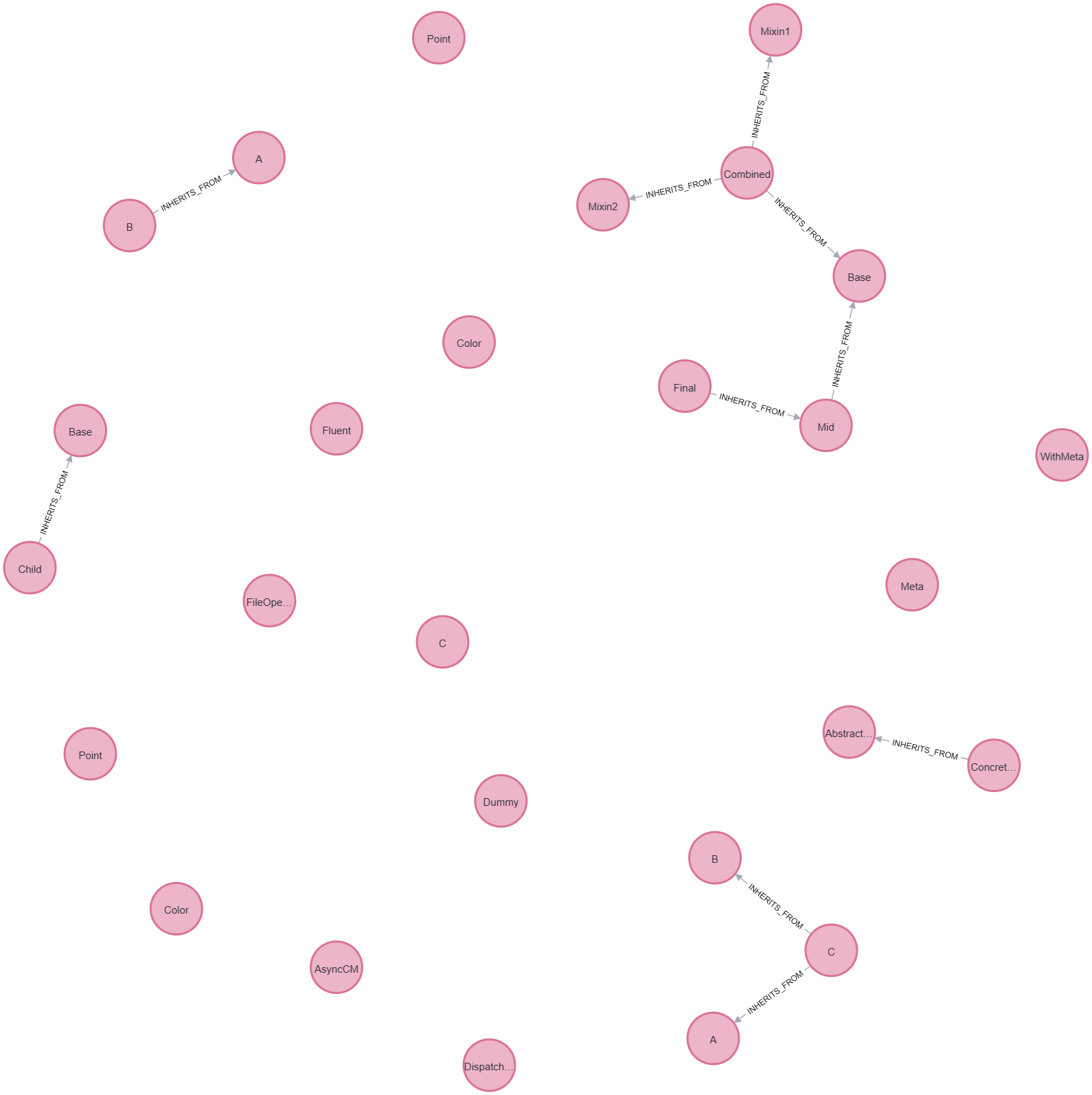

20. Find all classes

Natural Language: "Show me all the classes."
JSON Arguments: json { "cypher_query": "MATCH (n:Class) RETURN n.name, n.file_path, n.line_number LIMIT 50" }

Query 20

21. Find all functions in a file

Natural Language: "Find all functions in module_a.py."
JSON Arguments: json { "cypher_query": "MATCH (f:Function) WHERE f.file_path ENDS WITH 'module_a.py' RETURN f.name" }

Query 21

22. Find all classes in a file

Natural Language: "Find all classes in advanced_classes.py."
JSON Arguments: json { "cypher_query": "MATCH (c:Class) WHERE c.file_path ENDS WITH 'advanced_classes.py' RETURN c.name" }

Query 22

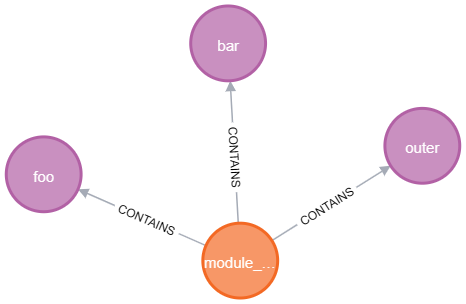

23. List all top-level functions and classes in a file

Natural Language: "List all top-level functions and classes in module_a.py."
JSON Arguments: json { "cypher_query": "MATCH (f:File)-[:CONTAINS]->(n) WHERE f.name = 'module_a.py' AND (n:Function OR n:Class) AND n.context IS NULL RETURN n.name" }

Query 23

24. Find functions in one module that call a function in another

Natural Language: "Find functions in module_a.py that call helper in module_b.py."
JSON Arguments: json { "cypher_query": "MATCH (caller:Function)-[:CALLS]->(callee:Function {name: 'helper'}) WHERE caller.file_path ENDS WITH 'module_a.py' AND callee.file_path ENDS WITH 'module_b.py' RETURN caller.name" }

Query 24

25. Find circular file imports

Natural Language: "Are there any circular dependencies between files?"
JSON Arguments: json { "cypher_query": "MATCH (f1:File)-[:IMPORTS]->(m2:Module), (f2:File)-[:IMPORTS]->(m1:Module) WHERE f1.name = m1.name + '.py' AND f2.name = m2.name + '.py' RETURN f1.name, f2.name" }

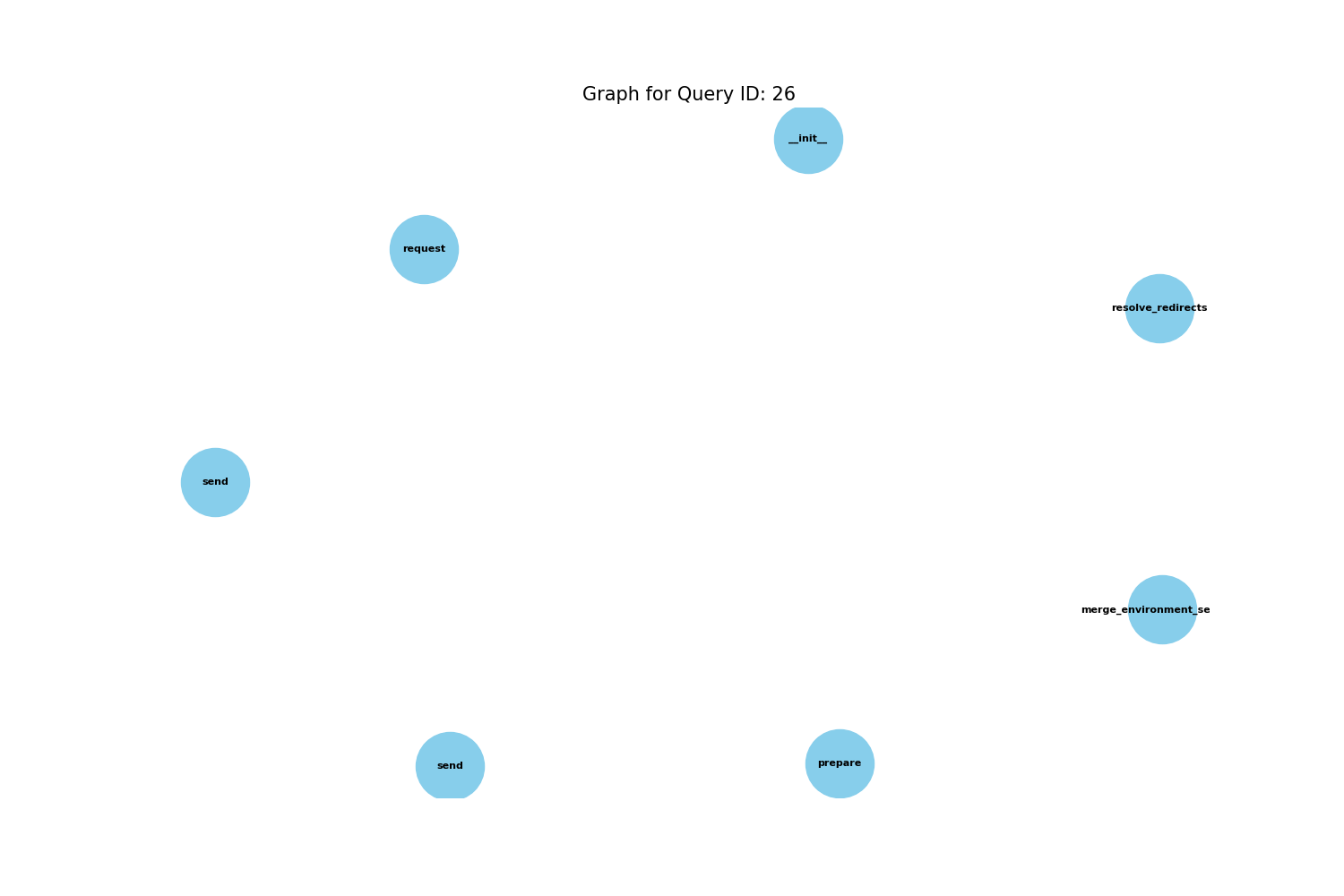

26. Find all functions with more than 5 arguments

Natural Language: "Find all functions with a large number of arguments."
JSON Arguments: json { "cypher_query": "MATCH (f:Function) WHERE size(f.args) > 5 RETURN f.name, f.file_path, size(f.args) as arg_count" }

Query 26

27. Find all functions in a file that have a docstring

Natural Language: "Find all functions in module_a.py that have a docstring."
JSON Arguments: json { "cypher_query": "MATCH (f:Function) WHERE f.file_path ENDS WITH 'module_a.py' AND f.docstring IS NOT NULL AND f.docstring <> '' RETURN f.name" }

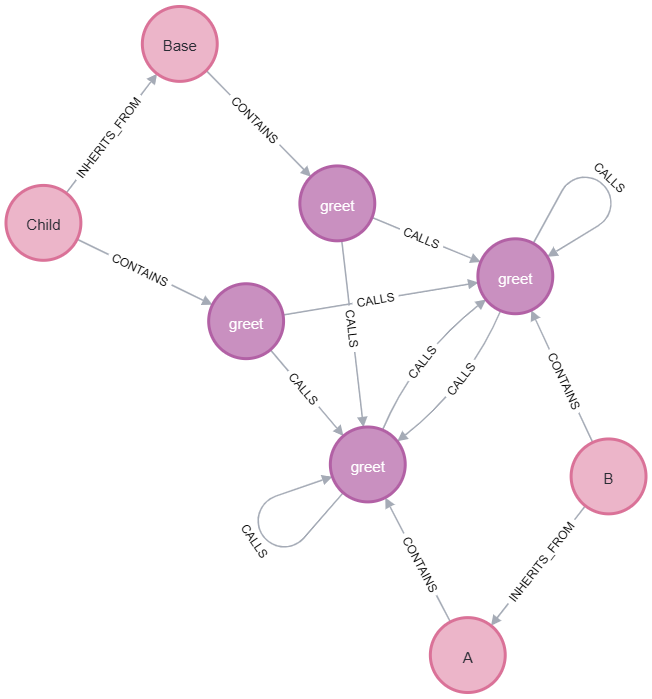

28. Find all classes that have a specific method

Natural Language: "Find all classes that have a greet method."
JSON Arguments: json { "cypher_query": "MATCH (c:Class)-[:CONTAINS]->(m:Function {name: 'greet'}) RETURN c.name, c.file_path" }

Query 28

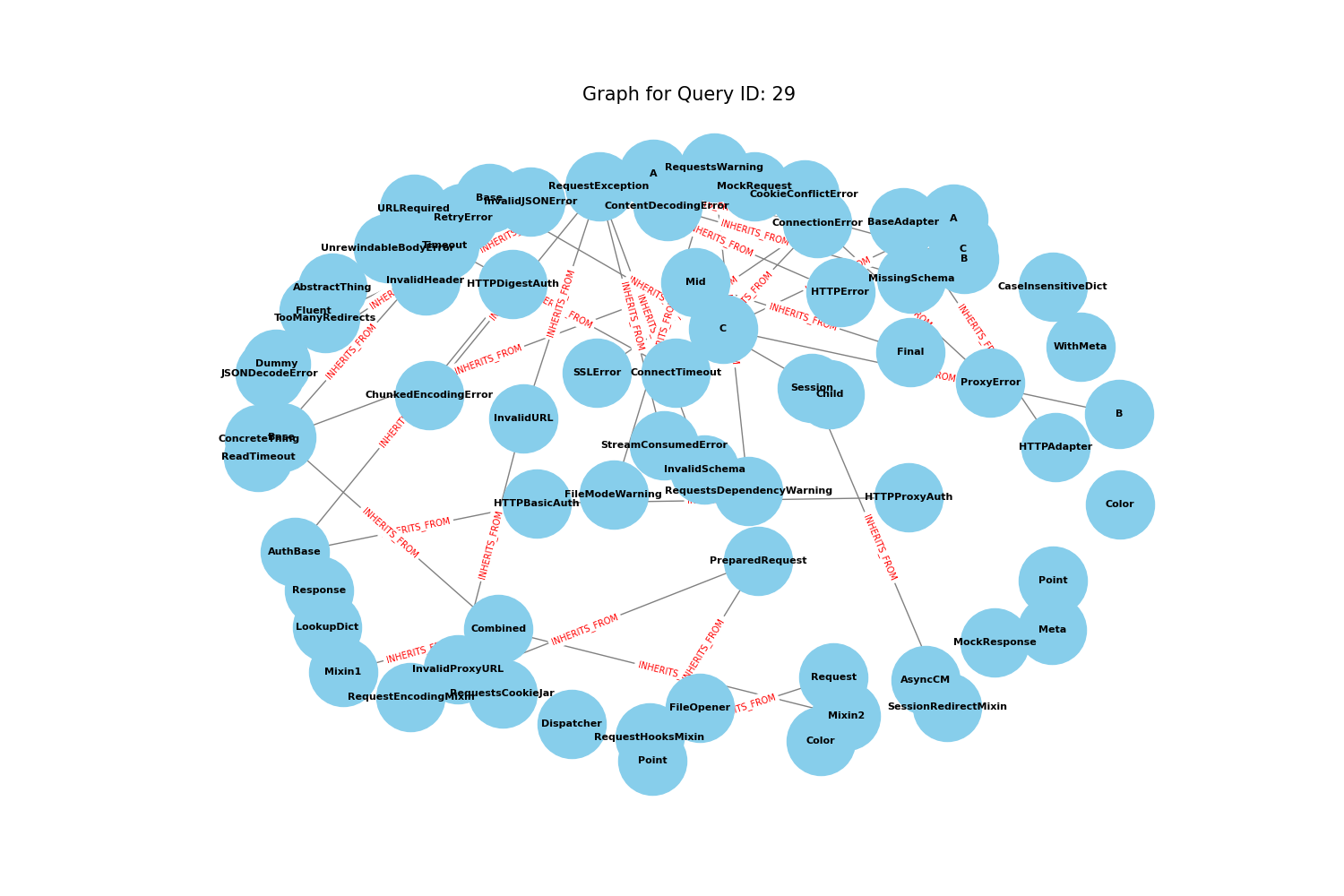

29. Find the depth of inheritance for all classes

Natural Language: "How deep are the inheritance chains for all classes?"
JSON Arguments: json { "cypher_query": "MATCH (c:Class) OPTIONAL MATCH path = (c)-[:INHERITS*]->(parent:Class) RETURN c.name, c.file_path, length(path) AS depth ORDER BY depth DESC" }

Query 29

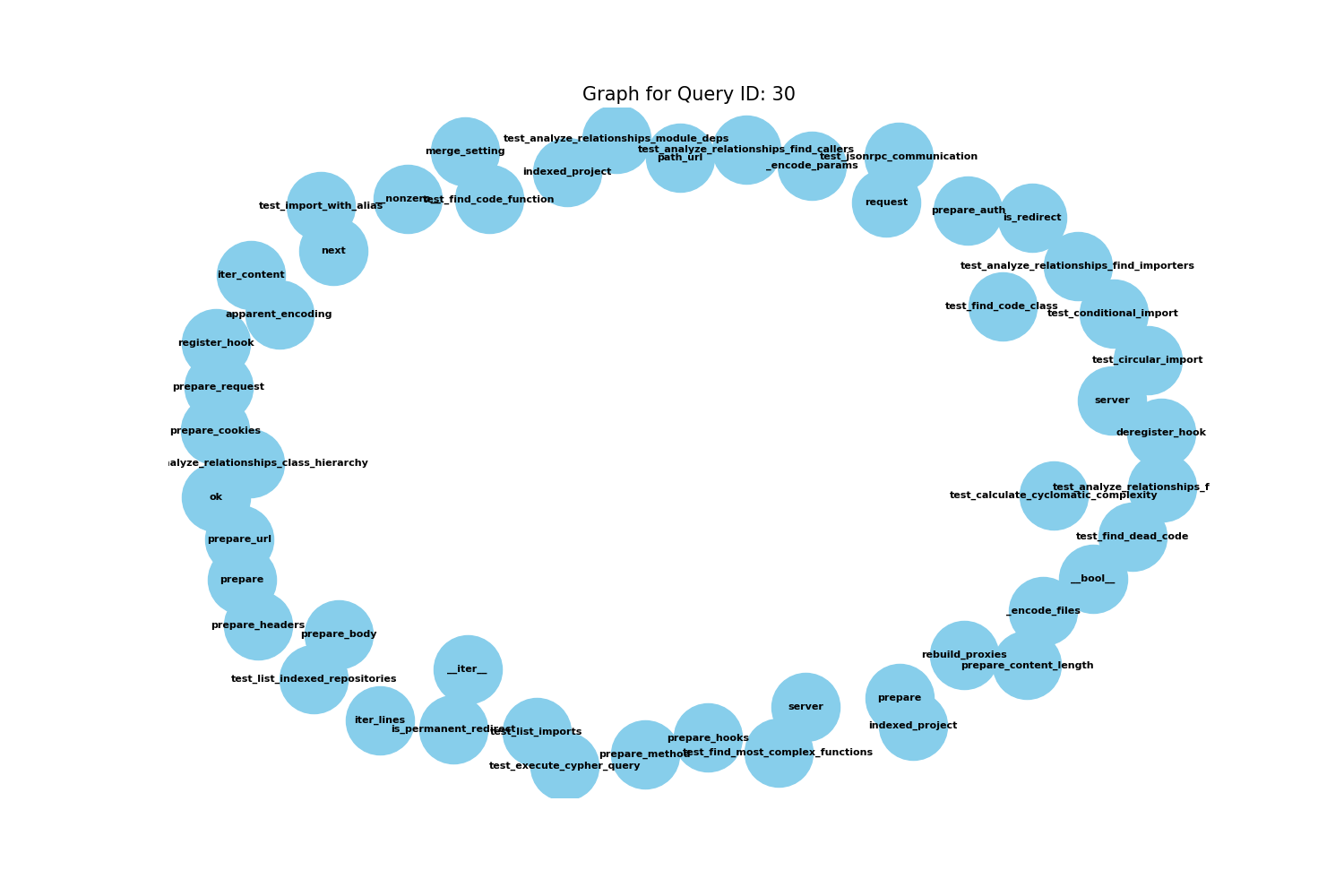

30. Find all functions that have a docstring

Natural Language: "Show me all functions that are documented."
JSON Arguments: json { "cypher_query": "MATCH (f:Function) WHERE f.docstring IS NOT NULL AND f.docstring <> '' RETURN f.name, f.file_path LIMIT 50" }

Query 30

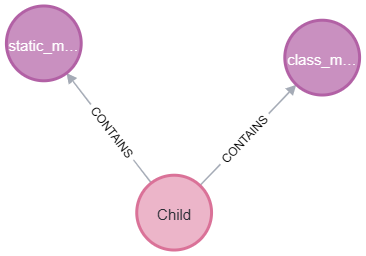

31. Find all decorated methods in a class

Natural Language: "Find all decorated methods in the Child class."
JSON Arguments: json { "cypher_query": "MATCH (c:Class {name: 'Child'})-[:CONTAINS]->(m:Function) WHERE m.decorators IS NOT NULL AND size(m.decorators) > 0 RETURN m.name" }

Query 31

32. Find the number of functions in each file

Natural Language: "How many functions are in each file?"
JSON Arguments: json { "cypher_query": "MATCH (f:Function) RETURN f.file_path, count(f) AS function_count ORDER BY function_count DESC" }

Query 32

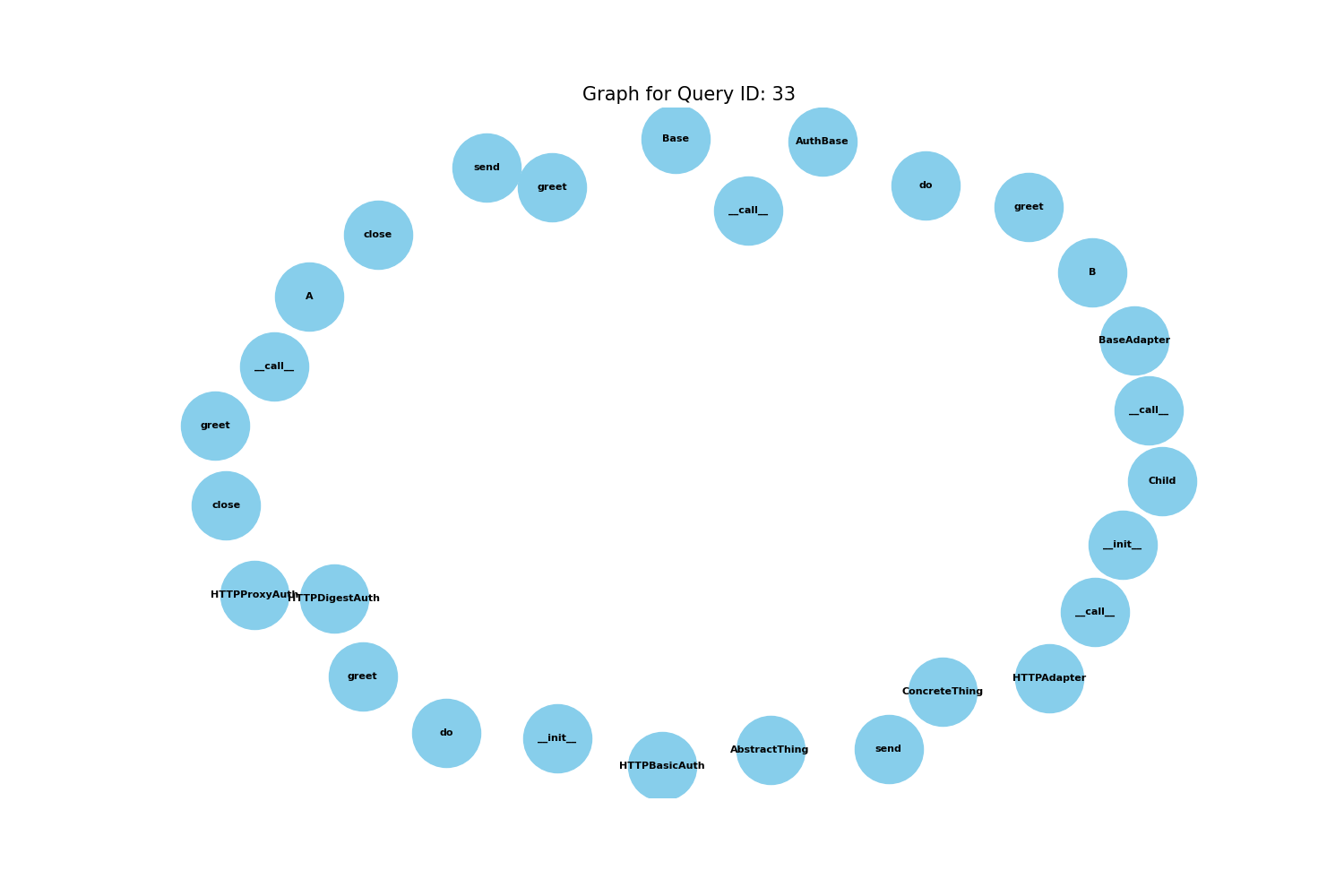

33. Find all methods that override a parent method

Natural Language: "Find all methods that are overridden from a parent class."
JSON Arguments: json { "cypher_query": "MATCH (c:Class)-[:INHERITS]->(p:Class), (c)-[:CONTAINS]->(m:Function), (p)-[:CONTAINS]->(m_parent:Function) WHERE m.name = m_parent.name RETURN m.name as method, c.name as child_class, p.name as parent_class" }

Query 33

34. Find all functions that call `super()`

Natural Language: "Find all methods that call their parent's method via super()."
JSON Arguments: json { "cypher_query": "MATCH (f:Function)-[r:CALLS]->() WHERE r.full_call_name STARTS WITH 'super(' RETURN f.name, f.file_path" }

Query 34

35. Find all calls to a function with a specific argument

Natural Language: "Find all calls to helper with the argument x."
JSON Arguments: json { "cypher_query": "MATCH ()-[r:CALLS]->(f:Function {name: 'helper'}) WHERE 'x' IN r.args RETURN r.full_call_name, r.line_number, r.file_path" }

Query 35

36. Find all functions that are not called by any other function

Natural Language: "Find all dead code (functions that are never called)."
JSON Arguments: json { "cypher_query": "MATCH (f:Function) WHERE NOT (()-[:CALLS]->(f)) AND f.is_dependency = false RETURN f.name, f.file_path" }

Query 36

37. Find all functions that are called with a specific argument

Natural Language: "Find all calls to print with the argument 'hello'."
JSON Arguments: json { "cypher_query": "MATCH (c:Call) WHERE c.name = 'print' AND 'hello' IN c.args RETURN c.file, c.lineno" }

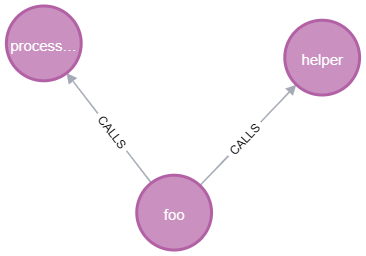

38. Find all direct and indirect callees of a function

Natural Language: "Show me all functions that are eventually called by the foo function."
Tool: analyze_code_relationships
JSON Arguments: json { "query_type": "find_all_callees", "target": "foo", "context": "/teamspace/studios/this_studio/demo/CodeGraphContext/tests/sample_project/module_a.py" }

Query 38

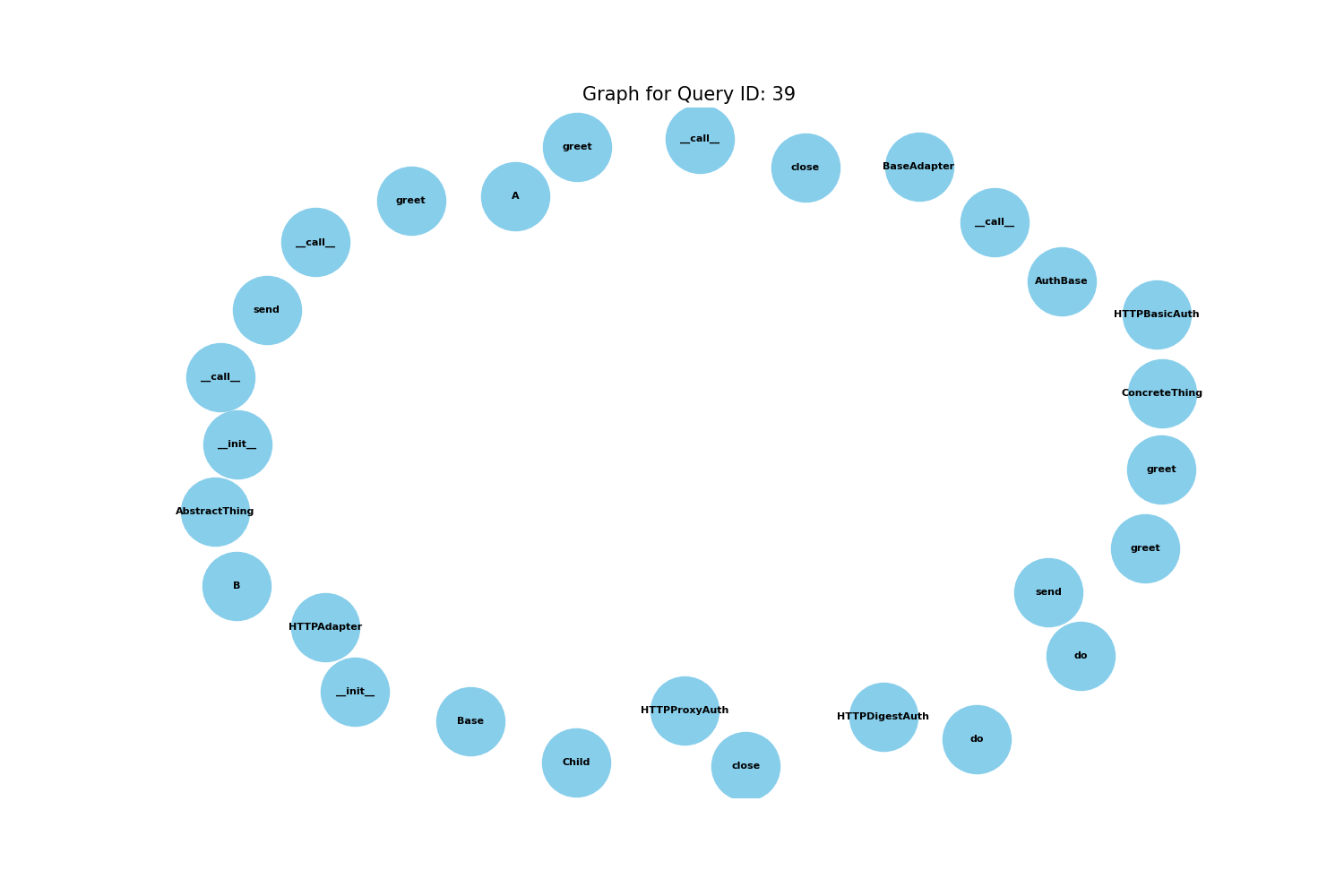

39. Find all functions that are overridden

Natural Language: "Find all functions that are overridden."
Tool: analyze_code_relationships
JSON Arguments: json { "query_type": "overrides", "target": "foo" }

Query 39

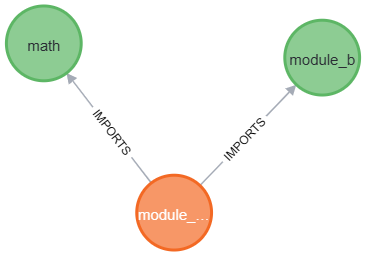

40. Find all modules imported by `module_a`

Natural Language: "Find all modules imported by module_a."
Tool: execute_cypher_query
JSON Arguments: json { "cypher_query": "MATCH (f:File {name: 'module_a.py'})-[:IMPORTS]->(m:Module) RETURN m.name AS imported_module_name" }

Query 40

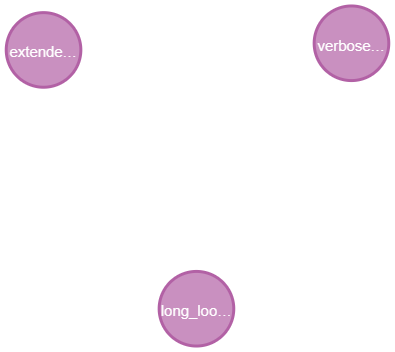

41. Find large functions that should be refactored

Natural Language: "Find functions with more than 20 lines of code that might need refactoring."
Tool: execute_cypher_query
JSON Arguments: json { "cypher_query": "MATCH (f:Function)\n WHERE f.end_line - f.line_number > 20\n RETURN f" }

Query 41

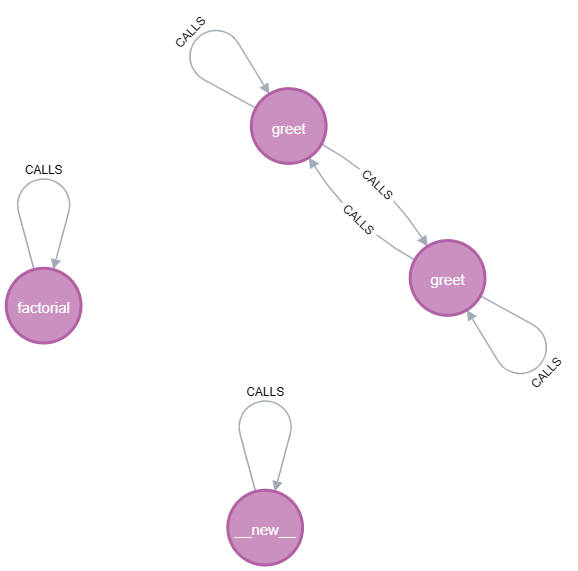

42. Find recursive functions

Natural Language: "Find all functions that call themselves (recursive functions)."
Tool: execute_cypher_query
JSON Arguments: json { "cypher_query": "MATCH p=(f:Function)-[:CALLS]->(f2:Function)\n WHERE f.name = f2.name AND f.file_path = f2.file_path\n RETURN p" }

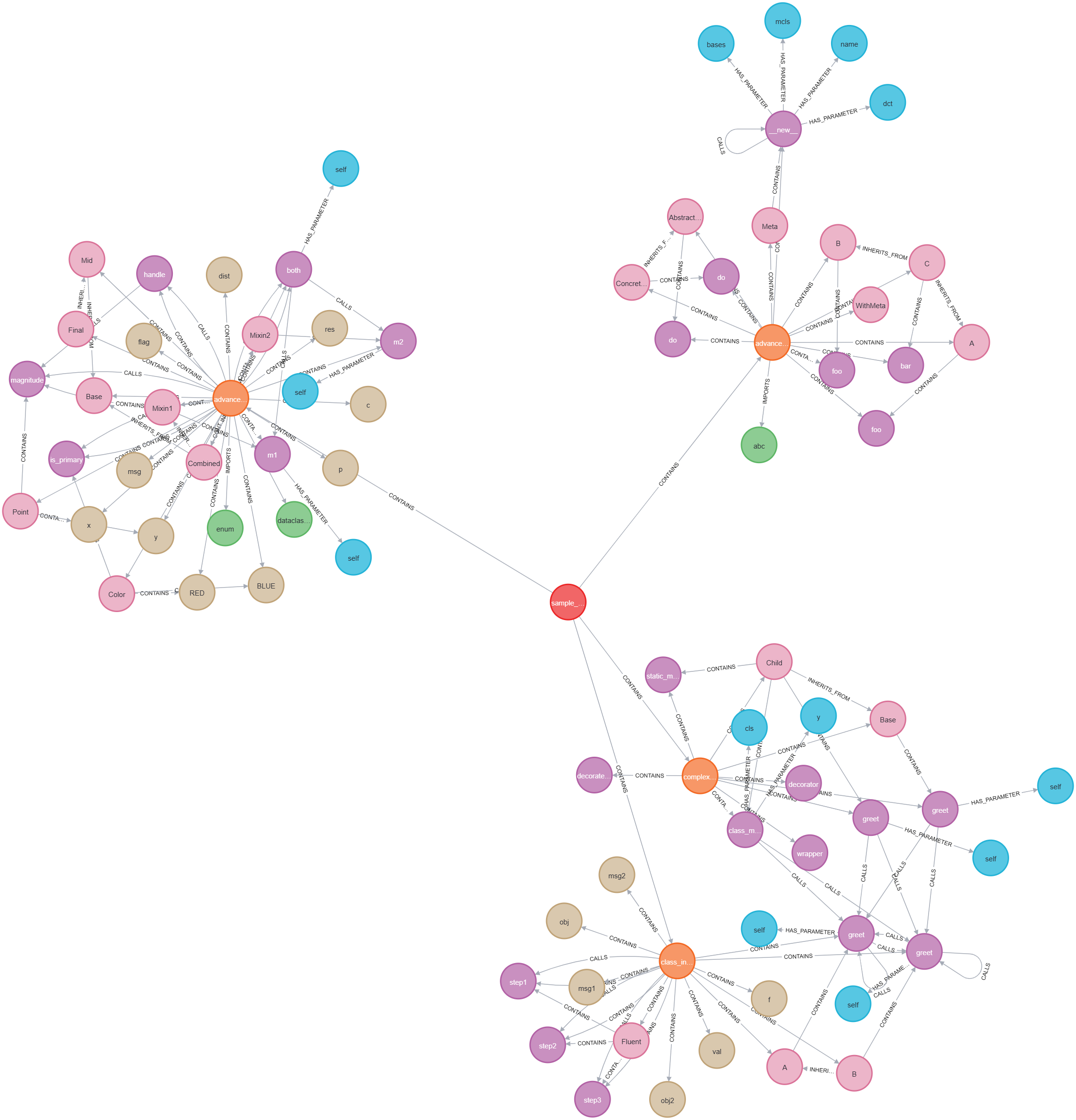

43. Find most connected functions (hub functions)

Natural Language: "Find the functions that are most central to the codebase (called by many and call many others)."
Tool: execute_cypher_query
JSON Arguments: json { "cypher_query": "MATCH (f:Function)\n OPTIONAL MATCH (f)-[:CALLS]->(callee:Function)\n OPTIONAL MATCH (caller:Function)-[:CALLS]->(f)\n WITH f, count(DISTINCT callee) AS calls_out, count(DISTINCT caller) AS calls_in\n ORDER BY (calls_out + calls_in) DESC\n LIMIT 5\n MATCH p=(f)-[*0..2]-()\n RETURN p" }

Security & Sensitive Data Analysis

44. Find potential security vulnerabilities (hardcoded secrets)

Natural Language: "Find potential hardcoded passwords, API keys, or secrets in the codebase."
Tool: execute_cypher_query
JSON Arguments: json { "cypher_query": "WITH [\"password\", \"api_key\", \"apikey\", \"secret_token\", \"token\", \"auth\", \"access_key\", \"private_key\", \"client_secret\", \"sessionid\", \"jwt\"] AS keywords\n MATCH (f:Function)\n WHERE ANY(word IN keywords WHERE toLower(f.source_code) CONTAINS word)\n RETURN f" }
